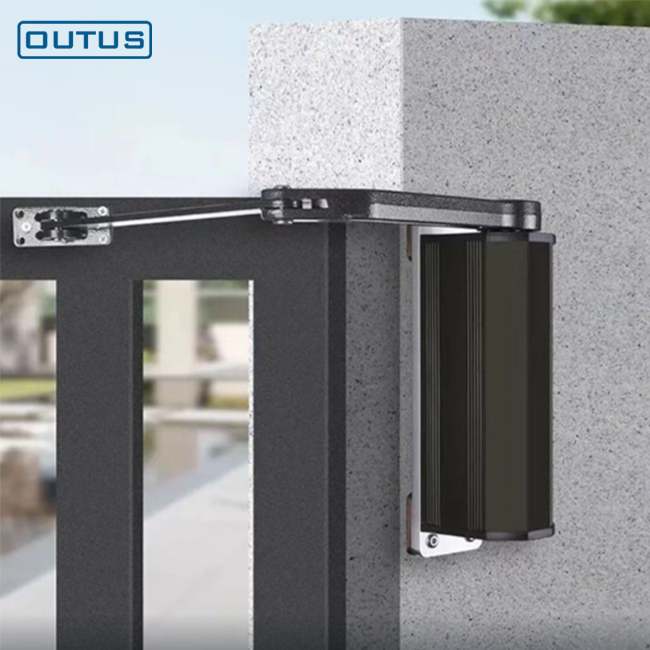

OUTUS Side-Mounted Gate Opener for Villa | Concealed Installation, High Security & Anti-Crushing Safety

✔ Convenient and Efficient Installation: The modular design simplifies the installation process. Simply secure the baseplate and then mount the main unit, eliminating the need for complex installation work, effectively shortening the installation cycle and reducing costs.

✔ Reliable Safety: Multiple built-in safety mechanisms automatically trigger a rebound function if the door encounters an obstacle during operation, preventing injuries or damage to personnel. Motor overcurrent, overload, and short-circuit protection ensure long-term stable operation and reduce the risk of failure.

✔ Quiet and Low-Noise Operation: Utilizing high-quality transmission components and noise reduction technology, operating noise levels are below 50dB, significantly lower than ambient noise levels, effectively minimizing disruption to surrounding residential and office environments.

✔ Energy-Saving and Intelligent: With a static power consumption of only approximately 0.5W, the door effectively conserves energy over time. A self-learning limit function automatically memorizes the door's open and closed positions, eliminating the need for manual adjustments and ensuring worry-free operation.

  • Products
  • Technical Data

Technical data

Parameter Specification
Applications Hospital Operating Rooms, Cleanrooms, Laboratories
Key Features Hands-free operation, Prevents hand pollution, Microcomputer-controlled
Sensing Technology Active Infrared Ray (Modulation-Demodulation)
Action Time (Response) Relay Output ≤ 45 ms
Supervisory Signal 4.5 mA
Power Input 12 – 36V AC/DC (Universal)
Power Consumption 82 mA
Electric Eye Dimensions 149 (L) × Φ13 (Diameter) mm
Outer Cover Dimensions 186 (H) × 175 (W) × 60 (D) mm
Internal Mounting Cut-out 118 (L) × 100 (W) × 54 (D) mm

Product description

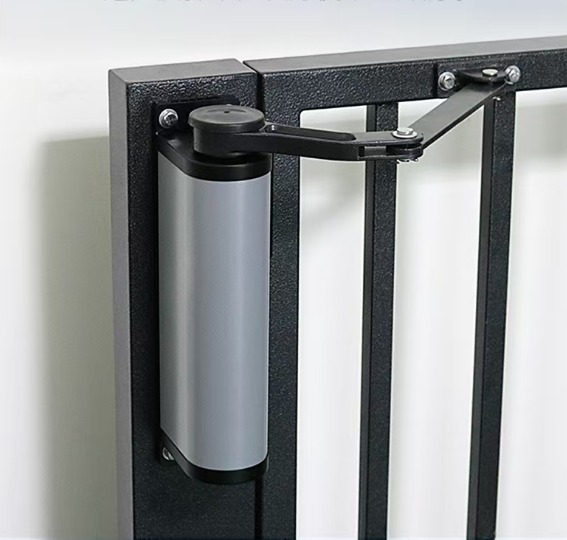

The side-mounted door operator is an intelligent electric drive device installed on the side of the door, automating the opening and closing of the door leaf. It is compatible with a variety of door types, including wooden and glass doors, and eliminates the need for major structural modifications for both new construction and renovations. It can operate swing doors up to 1200mm wide and weighing up to 140kg, with an opening angle of up to 90° and adjustable opening/closing speed and hold time. It also features low power consumption and low noise. Equipped with overcurrent and overload protection and a reverse function when encountering resistance, it is both safe and practical, making it widely applicable in various locations, including shopping malls, hospitals, and nursing homes.

OUTUS Side-Mounted Gate Opener for Villa | Concealed Installation, High Security & Anti-Crushing SafetyOUTUS Side-Mounted Gate Opener for Villa | Concealed Installation, High Security & Anti-Crushing Safety
