Automatic AC Motor Sliding Gate Opener Modern Villa Electric Heavy Duty Operator 1000kg Load Capacity

This sliding gate opener system covers multiple series of models including AC/DC/FC/DK, suitable for sliding gate bodies with different load-bearing grades of 1000-4000kg and gate body length ≤20 meters. Adopting rack and pinion transmission mode, it is compatible with AC/DC power supply modes, and equipped with intelligent control main board and frequency conversion control technology to realize core functions such as soft start, slow stop, and rebound/stop when encountering obstacles. The product comes with manual release and remote control as standard, and can be expanded with multiple accessories such as infrared anti-pinch, wireless keypad, alarm lamp and access control. With a working temperature range of -20℃~+70℃ and operating noise ≤58dB, it features professional and convenient installation and operation. It is suitable for the intelligent transformation of sliding gates in various places such as courtyards, factories, parks and residential quarters, balancing high load-bearing capacity, high safety and strong adaptability, and meeting the gate driving needs of different commercial and civil scenarios.

Products
Technical Data
Downloads

Product description

1.Full load-bearing coverage with multiple models, suitable for 1000-4000kg sliding gate bodies and gate body length ≤20 meters, meeting the needs of gates in different scenarios

2.Rack and pinion transmission design, stable power transmission, smooth operation without jitter, suitable for various sliding gate installation environments

3.Equipped with frequency conversion control & intelligent control main board, realizing soft start and slow stop, effectively reducing mechanical loss and extending equipment service life

4.Intelligent obstacle protection, rebound when encountering obstacles during closing, stop when encountering obstacles during opening, fully protecting the safety of personnel and property

5.Stable operation in wide temperature range, working temperature from -20℃ to +70℃, cold and heat resistant, adapting to climatic environments in different northern and southern regions

6.Low-noise operation ≤58dB, quiet operation without interference, balancing user experience and surrounding environmental comfort

7.Dual-control operation mode, standard with 2 remote controls (remote distance ≤50m) + manual release keys, manual operation available when power off, more convenient for emergency

8.Flexible remote control modes, optional single-button cycle/three-button independent control, supporting intelligent storage of 128 remote controls, meeting the needs of multi-person use

9.Rich expansion functions, can be equipped with infrared anti-pinch, wireless keypad, alarm lamp and access control system, security performance can be upgraded on demand

10.Auto-close + pedestrian mode, customizable auto-close delay, the gate opens about 1.1 meters in pedestrian mode, balancing traffic efficiency and safety

11.Dual-machine RS485 synchronous linkage, supporting master-slave machine setting, realizing synchronous opening and closing of double gates, suitable for large entrance and exit scenarios

12.Multiple safety protections, built-in overcurrent, overvoltage, overheating and overload protection, the motor automatically stops when running overtime, making the equipment use safer

13.Automatic travel learning function, automatically identifying gate width and weight, no complicated debugging required, quick adaptation to the gate after installation

14.Rolling code encrypted remote control technology, anti-copy and anti-cracking, making remote control operation safer and more confidential

15.Professional-grade durability, S2 20min working system, accessories made of high-quality materials, adapting to high-frequency gate opening and closing scenarios

Authentication

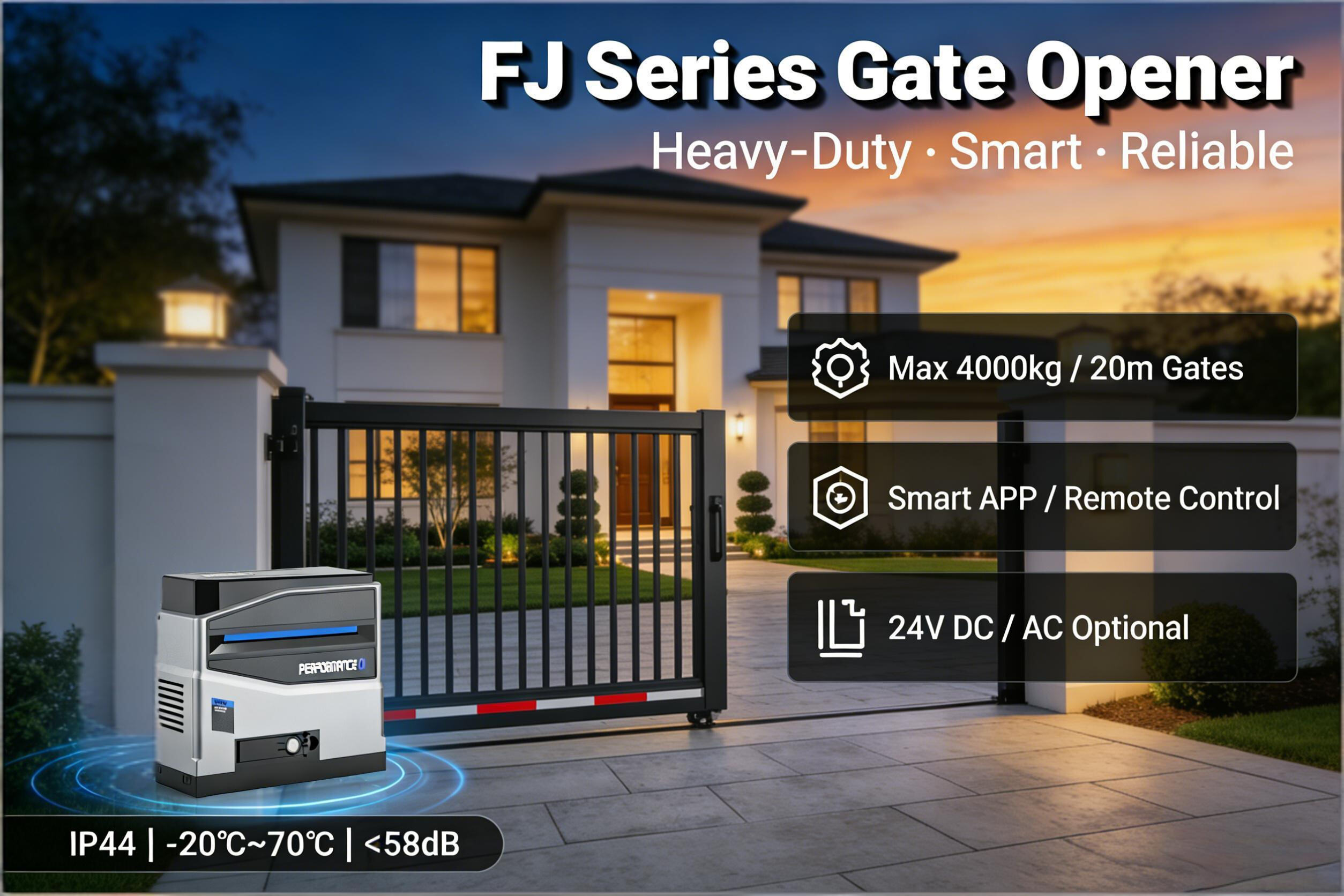

Sliding Gate Opener - Stable Auto Operation Show

Welcome to the on-site stable operation demo of the sliding gate opener system after complete installation! As clearly shown in the video, the gate opener realizes fully automatic and smooth opening and closing after installation, with rack and pinion transmission for strong power, no jitter and low noise (≤58dB) during operation. The heavy-duty specification is compatible with different gate bodies of 1000-4000kg, with gate length ≤20 meters. Equipped with intelligent frequency conversion control, the soft start and slow stop effectively reduce mechanical wear; the fully automatic operation mode ensures precise opening and closing, suitable for various entrances and exits such as factories, parks, residential quarters, private courtyards, etc. Meanwhile, the device is built-in with obstacle rebound/stop function and multiple circuit protections, balancing operational stability and usage safety. No complicated debugging is needed after installation, realizing the intelligent upgrade of the gate immediately, and it still runs stably even with high-frequency use!
