Gate Motor Modern Home Automatic Sliding Door Opener with AC Motor for Hospital Metal Construction

This rack and pinion type sliding gate operator is a remotely controlled automatic gate driving device, specifically designed for sliding gates. It adopts a transmission structure composed of a motor, worm, gear, driven gear (sprocket), and rack. The motor drives the worm, which then transmits power to the worm gear and driven gear, thereby driving the rack to realize the electric opening and closing of the gate. The device supports emergency operation during power failure: turn the special clutch key 90° clockwise to disengage the clutch and control the gate manually. It is suitable for gates with a weight range of 100-2000KG, with an operating speed of 12m/min and a working temperature range of -25℃ to +70℃. Compatible with both magnetic and spring limit switches, it supports wall-mounted installation and can be used with accessories such as infrared sensors, keypads, and warning lights. It is widely applicable to various sliding gate scenarios including residential and commercial premises.

Products
Technical Data
Downloads

Product description

1.Stable and Reliable Transmission System

Adopts a precision transmission structure of motor + worm + gear + rack, enabling efficient and smooth power transmission with low operating noise. Ensures smooth opening and closing of the gate, suitable for heavy gates ranging from 100-2000KG, meeting the needs of different scenarios.

2.Dual Limit & Safety Protection

Compatible with both magnetic and spring limit switches for precise control of gate start and stop positions; equipped with reliable grounding (ground resistance <4m) and leakage short-circuit protection. Cut off the power supply during installation and maintenance to ensure safety, and vehicles/pedestrians are strictly prohibited from passing when the gate is operating, avoiding potential safety hazards comprehensively.

3.Power Failure Emergency Design

Built-in clutch disengagement device. In case of power failure, switch to manual mode with the special key to open or close the gate quickly, avoiding inconvenience caused by power outages and ensuring flexible emergency response.

4.Wide Adaptability & Strong Compatibility

Operating temperature ranges from -25℃ to +70℃, adapting to different climatic environments; reserves 1 square millimeter (or 1.5 square millimeters with two conductors) for wiring installation, compatible with various accessories such as infrared sensors, keypads, and remote controllers, offering strong functional expandability.

5.Durable & Easy to Maintain

The motor uses advanced lubricating grease, no need to add or replace lubricating oil additionally; key parts are coated with anti-rust oil to prevent corrosion effectively; structural components are sturdy and durable, requiring only regular inspection of grounding and component status, resulting in low maintenance costs.

6.Efficient & Convenient Operation

Supports remote control, enabling wireless operation of the gate with a remote controller; operating speed up to 12m/min, ensuring high efficiency in opening and closing; clear installation process, easy installation of metal base and rack, flexible adjustment of limit positions, adapting to different installation scenarios.

Authentication

Full-Angle Display & Internal Structure: Rack and Pinion Sliding Gate Operator + Complete Accessories

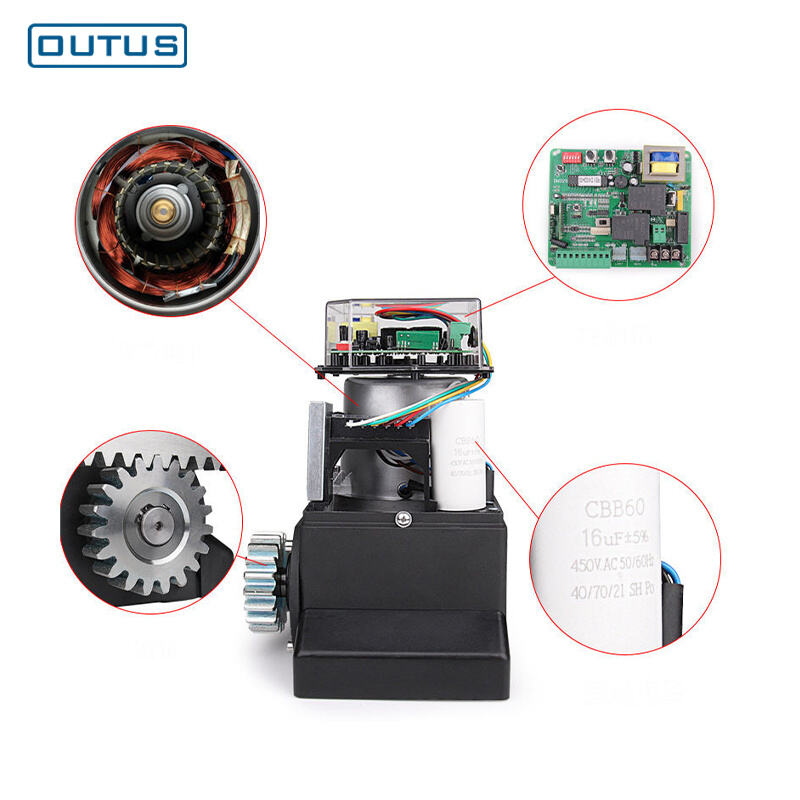

See it all from exterior to core! The video starts with a multi-angle display of the overall design of the sliding gate operator, which is simple and elegant with easy installation; the middle shell removal link intuitively presents the internal precision transmission system. The motor uses advanced lubricating grease, no need to add additional lubricating oil, and key components are rust-proof treated for maximum durability; the end shows a full set of accessories, including magnetic/spring limit switches, infrared sensors, warning lights, etc., with strong compatibility for flexible function expansion. The product's working temperature ranges from -25℃ to +70℃, with reliable grounding and leakage short-circuit protection, combining safety and practicality to meet the automatic control needs of sliding gates in different scenarios.
