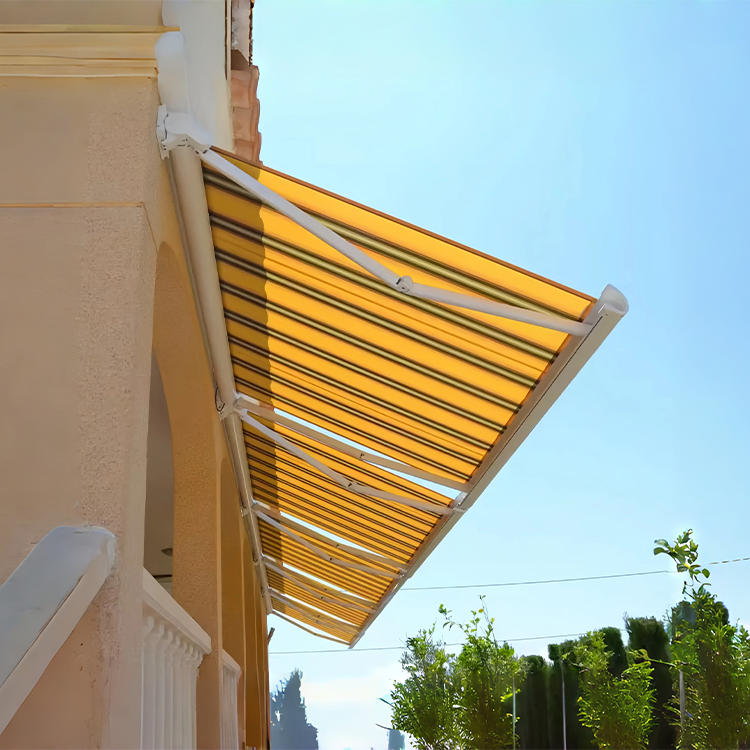

Heavy-Duty B02 Awning: 5.0MM Aviation Aluminum Crank Arm & 350KG Load Capacity

The B02 Awning is a wind-resistant, large-span shading device specifically designed for large-area shading scenarios, with a maximum specification of 28M×5M. Equipped with a tubular motor, it is easy to operate and can be opened on demand. The main frame of the product is made of high-strength 6063-T5 aluminum alloy as the core profile. The double-chain crank arm is crafted from 5.0MM aviation aluminum, with a large arm size of 93×60MM and a small arm of 79×48MM. The roller tube is φ80×3MM aluminum alloy, and the front tube has a thickness of 2MM, ensuring a sturdy and durable structure. Two fabric options are available: domestic and imported. Imported fabrics include Spanish Recasens solution-dyed acrylic fabric and top-grade German swela fabric, featuring excellent performance such as sunshading, UV resistance, stretch and tear resistance, and weather resistance. The product is fixed with 40×60×2.0MM hot-dip galvanized square tubes, paired with 30MM extra-long aluminum alloy wall brackets. It is suitable for various large venues such as villas, hotels, high-end clubs, outdoor bars, and logistics and warehousing centers. A single arm can lift more than 350KG, with strong wind resistance, meeting the usage needs under different environmental and climatic conditions.

Products
Technical Data

Product description

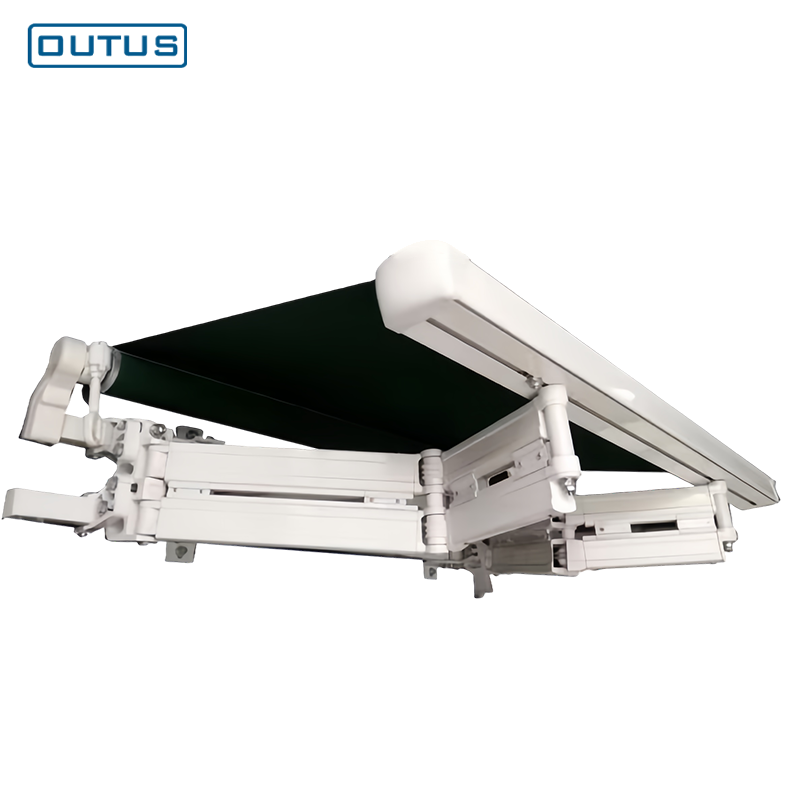

Ultra-Large Span & Super Load-Bearing Capacity：Maximum span of 28M×5M to meet large-area shading needs; 5.0MM aviation aluminum double-chain crank arm paired with a sturdy arm head hanger, single-arm load-bearing capacity up to 350KG or more, maintaining stability even when extended 5 meters with excellent wind resistance.

High-Quality & Durable Materials & Fabrics：The main frame is made of 6063-T5 high-strength aluminum alloy, and fasteners are high-strength stainless steel, corrosion-resistant and rust-proof with a long service life; optional Spanish Recasens solution-dyed acrylic fabric (10-year color fastness) or top-grade German swela fabric (self-cleaning, degradable), both featuring stretch and tear resistance, UV resistance (80UV+), waterproof and stain-resistant properties.

Humanized Structural Design：The front tube is equipped with a hidden drainage system, aesthetic and not prone to water accumulation; the roller tube is made of 3.0MM thickened aluminum alloy with a solid structure; 40×60MM hot-dip galvanized square tubes are sprayed with AkzoNobel special powder, which does not peel off for 10 years; 30MM extra-long wall brackets suitable for various walls ensure stable installation.

Efficient & Convenient Operation：Supports optional 80N, 100N, 120N tubular motors, with flexible and convenient electric control, open on demand; the crank arm is only 2.65M long when retracted, saving storage space without affecting the overall beauty of the venue.

Superior Durability：304 stainless steel double chain has strong tensile strength, with a service life more than 10 times that of ordinary steel wire, capable of resisting corrosion and friction breakage caused by harsh weather; the overall structure is reasonably designed with uniform force bearing, avoiding the collapse problem of competitors due to damaged connectors, with higher safety factor.

Wide Scene Adaptability：Suitable for various large venues such as villas, hotels, high-end clubs, outdoor bars, parking lots, logistics and warehousing centers, and swimming pools, providing high-quality shading solutions for both commercial operations and private leisure.

Authentication

Premium B02 Awning: Imported Recasens/swela Fabric Opens Elegantly for Commercial Venues

Experience the seamless operation of the B02 awning as it slowly opens to transform your outdoor area! This heavy-duty sunshade features a sturdy structure with 304 stainless steel double chains (10x more durable than ordinary steel wire) and 3.0MM thickened aluminum roller tubes, ensuring long-lasting performance. The motorized control allows easy on-demand use, and the awning retracts to just 2.65M when not in use, saving space. With options of imported fabrics offering superior stretch/tear resistance and weatherproofing, it’s built to withstand harsh conditions. Whether for commercial venues or large residential spaces, the B02 awning delivers reliable, stylish shading with every smooth opening.

Technical data

Category	Item	Detailed Specifications
Basic Information	Product Type	Large-Span Wind-Resistant Awning
	Maximum Specification	28M (Width) × 5M (Projection)
	Application Scenarios	Villas, hotels, high-end clubs, outdoor bars, parking lots, logistics warehouses, swimming pools, factories, etc.
Frame & Structure	Main Frame Material	High-Strength 6063-T5 Aluminum Alloy
	Roller Tube	6063-T5 Aluminum Alloy, φ80mm, Thickness: 3MM
	Front Tube	6063-T5 Aluminum Alloy, Thickness: 2MM
	Double-Chain Crank Arm	6063-T5 Aviation Aluminum Alloy, Thickness: 5MM- Large Arm Size: 93×60MM- Small Arm Size: 79×48MM- Retracted Length: 2.65M (for 5M projection)- Single-Arm Weight: 23.35KG (46.7 catties)
	Fixing Tube	40×60MM Square Tube, Thickness: 2MM, Hot-Dip Galvanized + AkzoNobel Special Powder Coating (10-year non-peeling)
	Wall Bracket	30MM Extra-Long Aluminum Alloy, Suitable for Various Wall Types
	Fasteners	High-Strength Stainless Steel
	Chain	304 Stainless Steel Double Chain, Tensile Strength 10× Higher Than Ordinary Steel Wire
Fabric Options	Option 1 (Spanish Recasens)	- Composition: 100% Solution Dyed Acrylic Fiber- Weight: 300g/m² ±5% (UNE 53352)- Width: 120cm (Standard) / 220/250/300cm (Optional) ±1%- Performance: UV-Resistant (80UV+), Waterproof (≥300mm, ISO 811), Stain-Resistant, Stretch & Tear Resistant- Color Fastness: Up to 5 years (UNE EN ISO 105B02)- Service Life: Over 10 years- Warp Tear Strength: 130 daN/5cm ±5% (UNE EN ISO 13934-1)- Weft Tear Strength: 78 daN/5cm ±5% (UNE EN ISO 13934-1)- Oil Resistance Index: 25
	Option 2 (German swela)	- Composition: Degradable & Recyclable Modified Polyester Fiber with Nano-Coating- Performance: UV-Resistant (Blocks UV Without Shading Sunlight), Waterproof, Self-Cleaning (Stain-Resistant), Stretch & Tear Resistant- Color Fastness: Up to 10 years- Feature: Environmentally Friendly, Bright & Uniform Color
	Option 3	Domestic Polyester Sunshade Fabric
Motor & Operation	Tubular Motor (Optional)	80N, 100N, 120N
Motor & Operation	Operation Mode	Motorized Control (Easy to Open/Close On Demand)
Performance Parameters	Load-Bearing Capacity	Single Arm ≥350KG
	Wind Resistance	Strong (Designed for Outdoor Windy Environments)
	Special Design	Hidden Drainage System on Front Tube (Prevents Water Accumulation)
